8-9032-H911 Modification for V-Rod

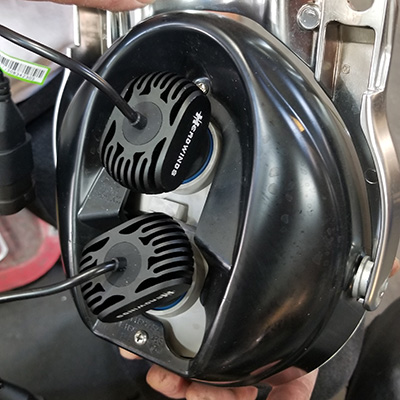

When installed, the H9 bulb (bottom) is cocked off
clockwise like this and throws the hi beam to the left

Drill and counter sink a new hole on the base
(follow instructions below) to change the orientation

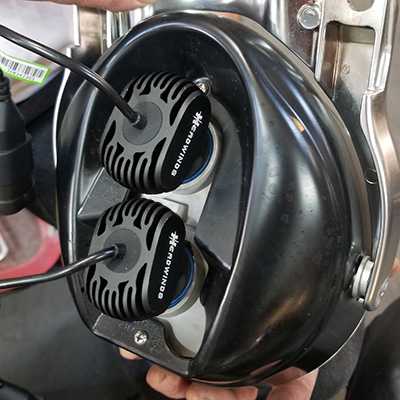

of the H9 bulb like this which puts the hi beam
above the low beam pattern where it should be

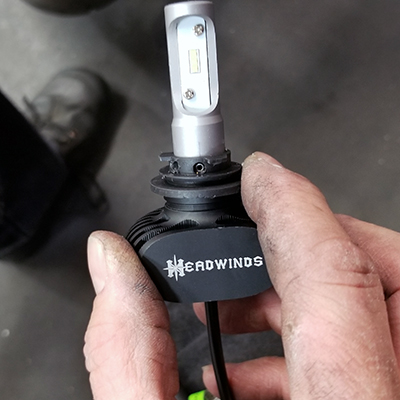

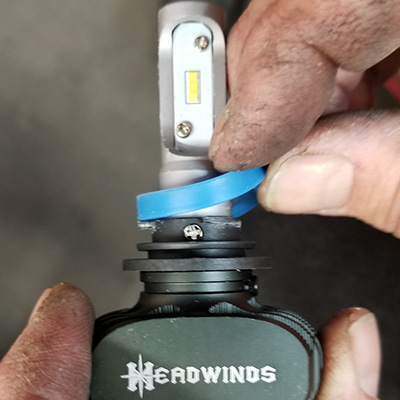

1. Remove the blue silicone gasket from bulb

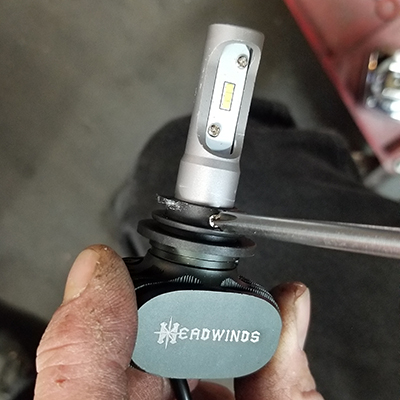

2. Remove the screw from bulb

3. Screw removed

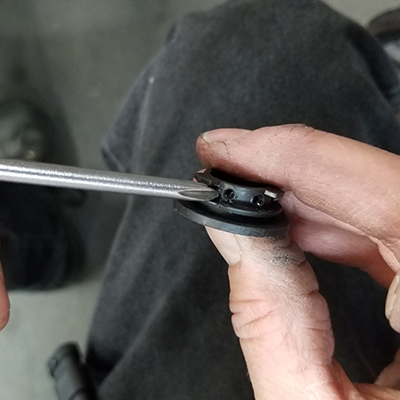

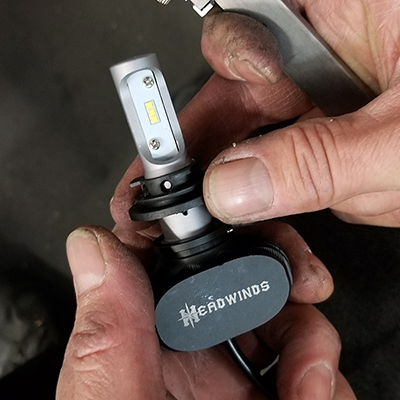

4. Remove ring

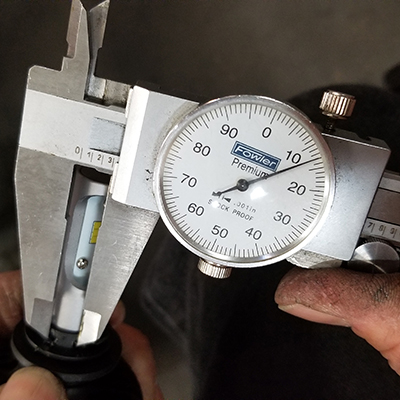

5. Drill hole & counter sink to dia. .150, 312"
(52) clockwise from exhisting hole

6. Hole drilled

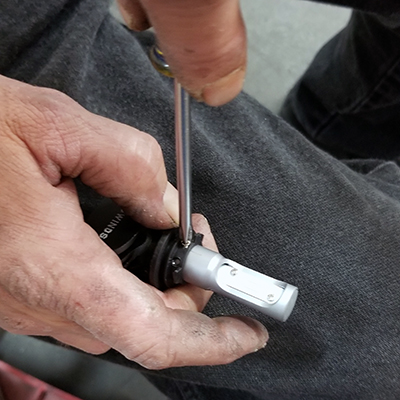

7. Re-insert screw into drilled hole

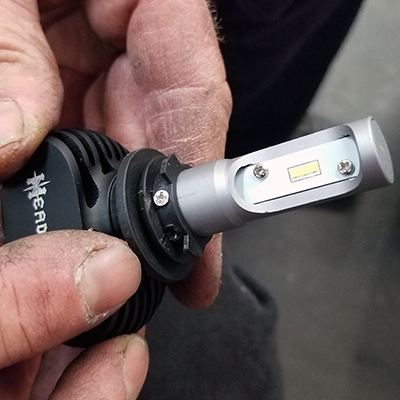

8. Bulb is ready to use

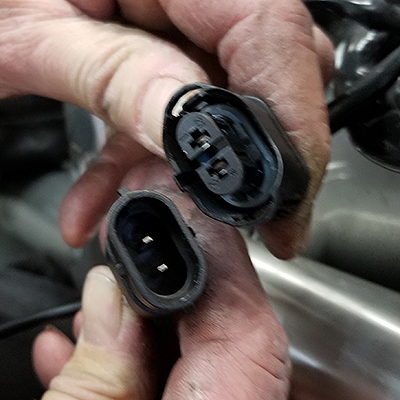

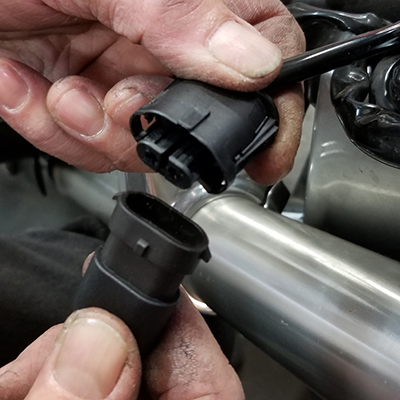

9. Plug bulb into headlight connector

10. If bulb fails to operate, unplug the bulb,
turn the connector plug over and try again
