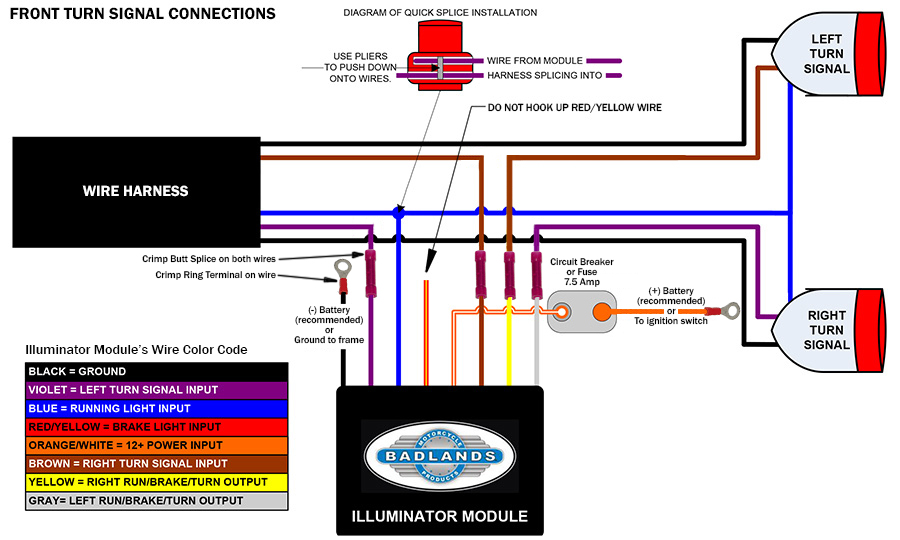

Illuminator - Wire Schematic - Front


INSTALLATION:
• Remove seat
• Remove left side cover for FL's
• DISCONNECT battery
• Refer to schematic, there is a power side and a turn signal side of the wire harness
• Splice Illuminator wires into the running and brake light wires using tap splices.
• Cut the VIOLET and BROWN wires (left and right turn signal) in the wire harness and connect the "Power Side" of these wires
  to the Illuminator Violet and Brown wires.
• Use butt splices to connect the illuminator GRAY and YELLOW wires to the "Turn Signal Side" of the VIOLET and BROWN
  wires that were just cut.

LED & 1157 DUAL FILLAMENT BULBS:
• Some lighting has 2 or 3 wires. One wire may be ground while the others are power.
• After cutting, twist the turn signal side of the power wires together.
  Do not twist the ground wire with the power wires.
• For RUN & TURN connect all the wires as shown on the schematic except the RED/YELLOW wire.
