Install 1-7048-35

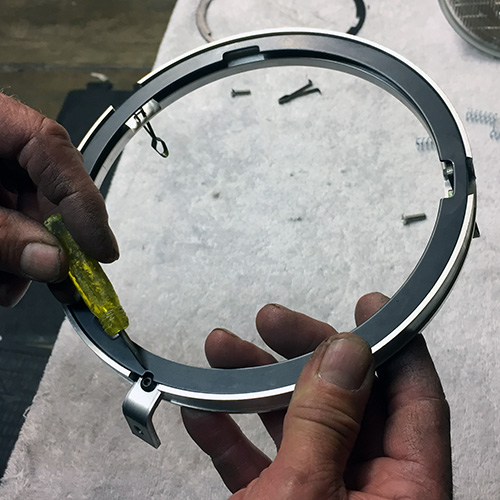

Step 1: Line up rings, this notch can help you center it to screw

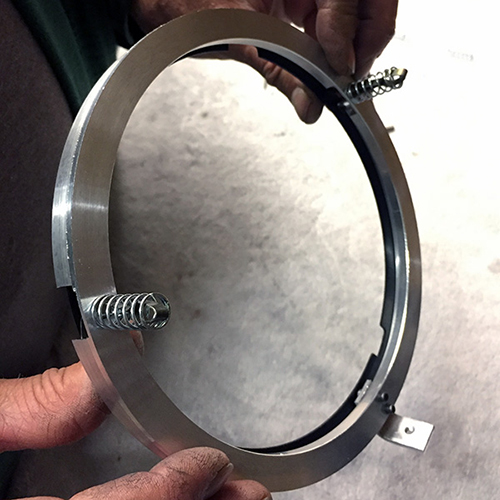

Step 2: Clips and springs should be in place

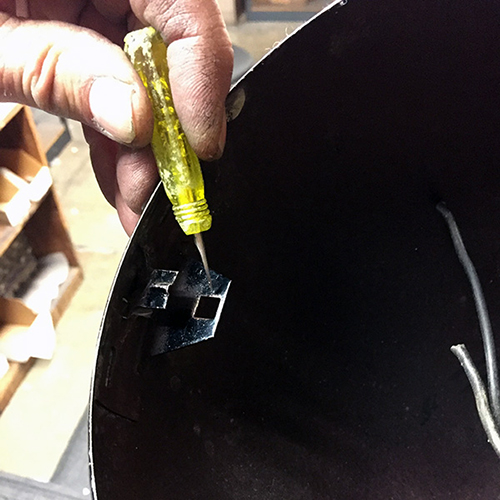

Step 3: Tip of the clip is inserted into these existing holes inside housing

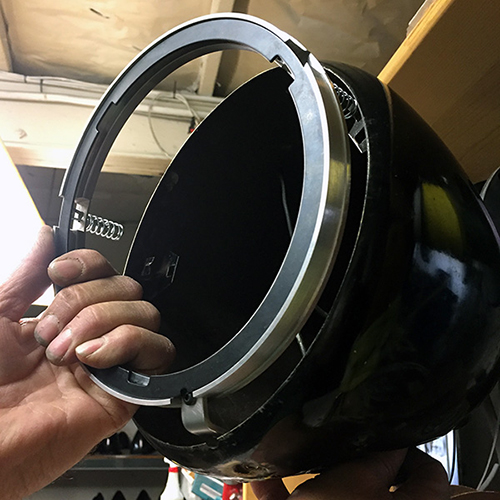

Step 4: Line up bottom bracket with screw hole at 6 o'clock on housing

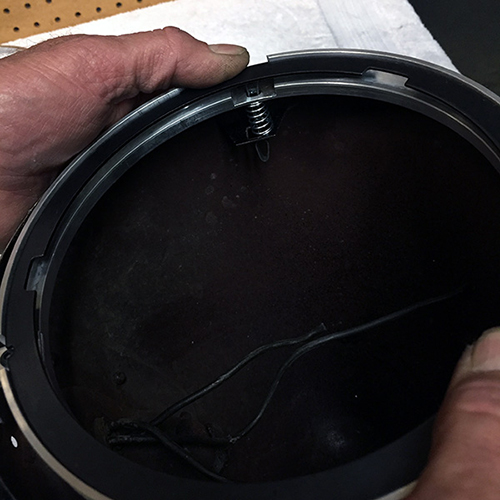

Step 5: Press clips thru housing holes

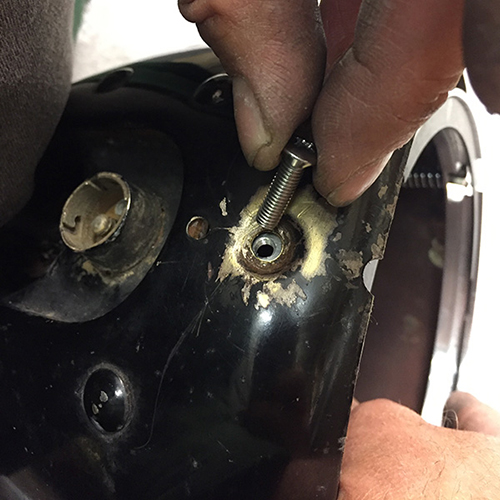

Step 6: Line up threaded hole and install screw just a few threads

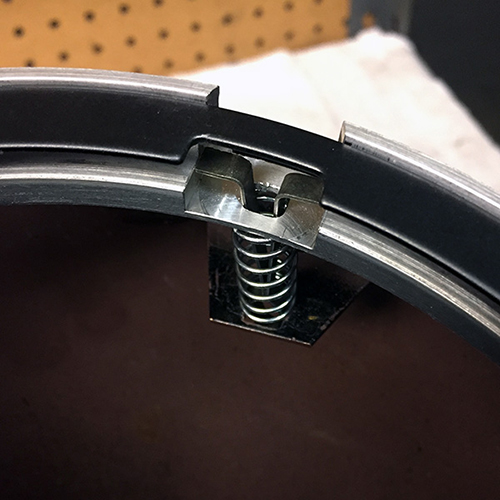

Step 7: Clips should be seated as shown

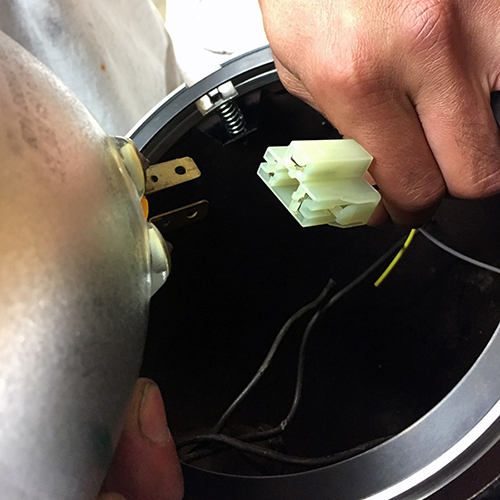

Step 8: Connect lamp to lamp connector (pigtail)

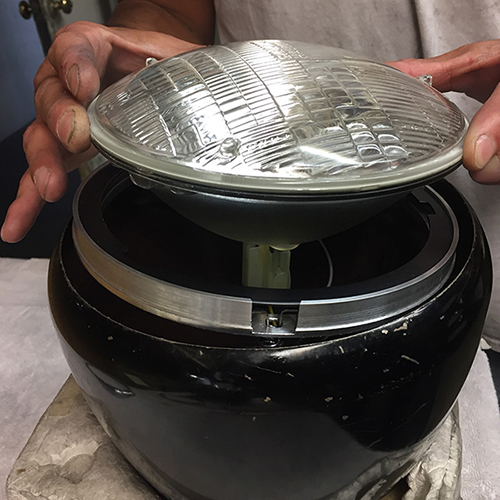

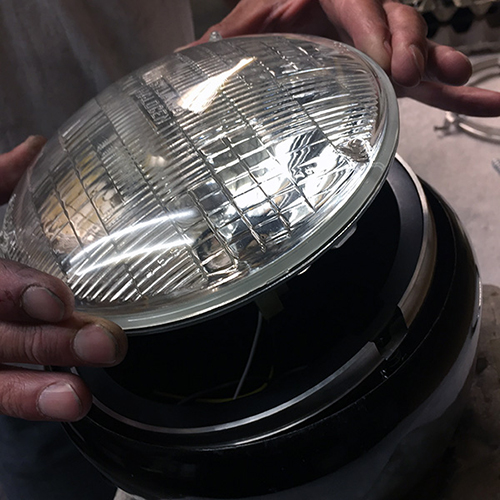

Step 9: Install lamp by placing notches into tabs.

Step 10:

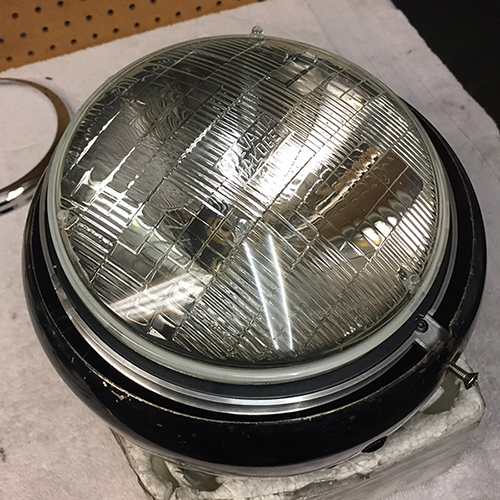

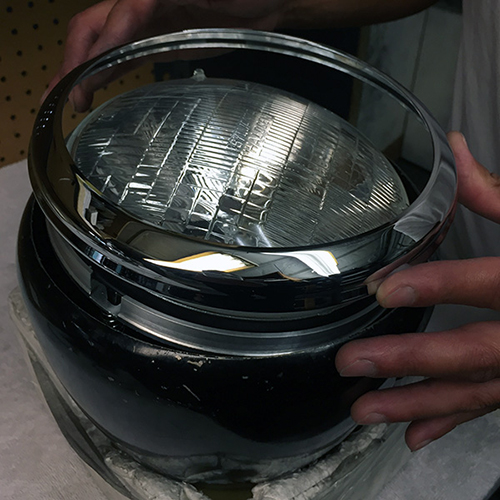

Step 11: Properly installed lamp

Step 12: Install beauty ring

Step 13:

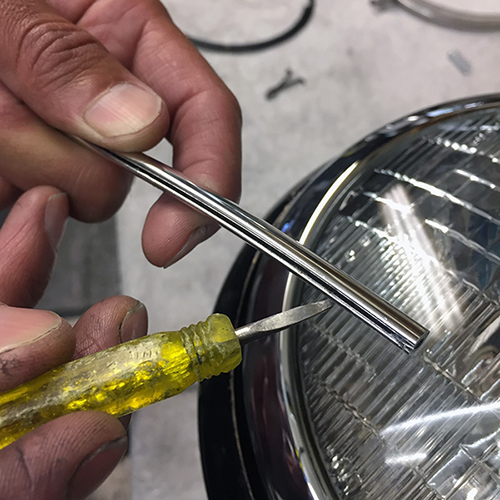

Step 14: Notice opening on finishing ring

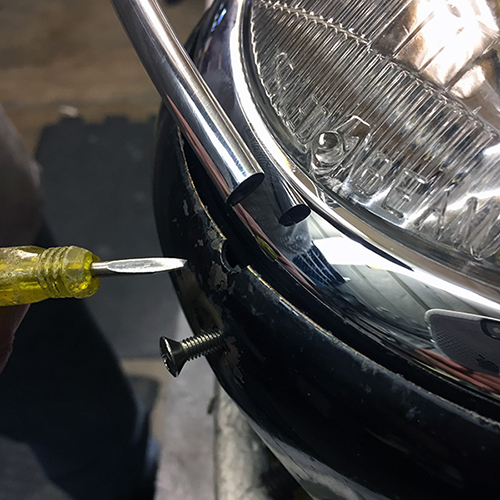

Step 15: Finishing ring fits along housing

Step 16:

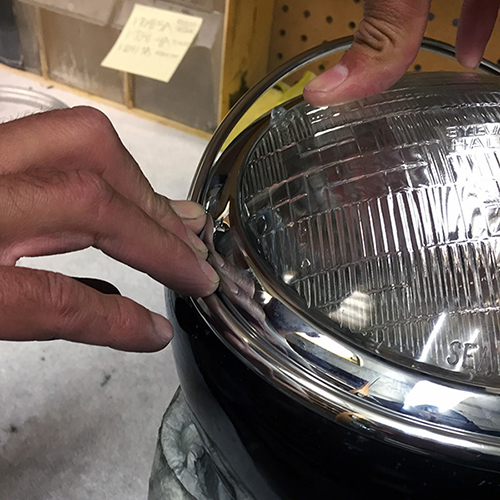

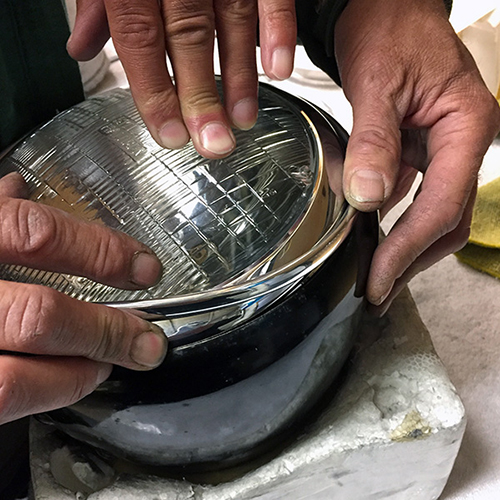

Step 17: Push lamp down as you install finishing ring

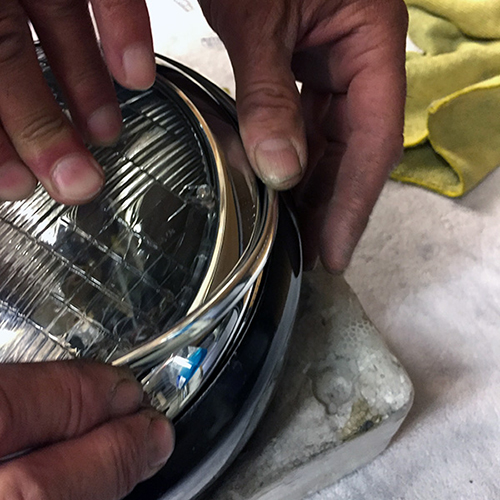

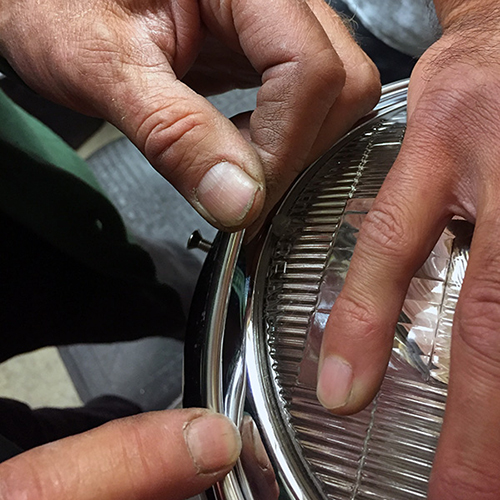

Step 18: Continue pushing lamp into housing as you install finishing ring

Step 19:

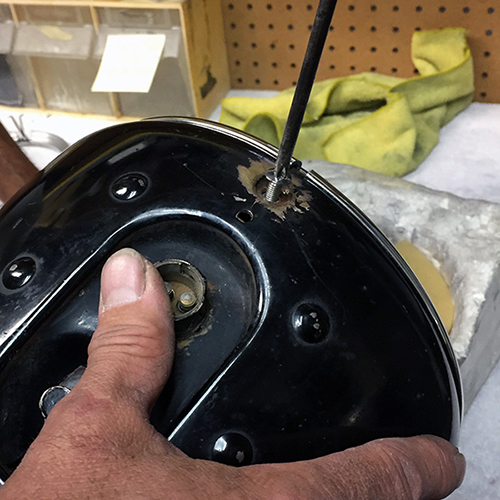

Step 20: Finish installing screw

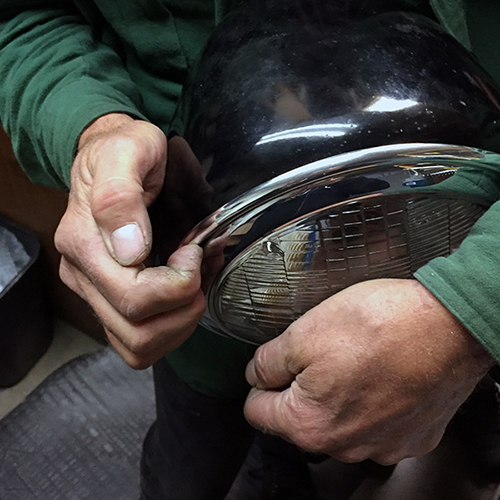

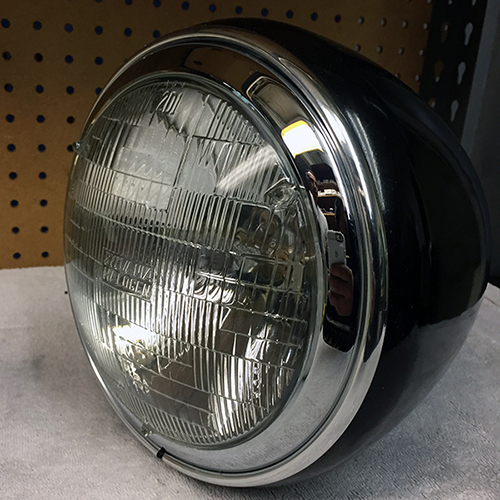

Step 21: Make sure finishing ring is properly seated all the way around

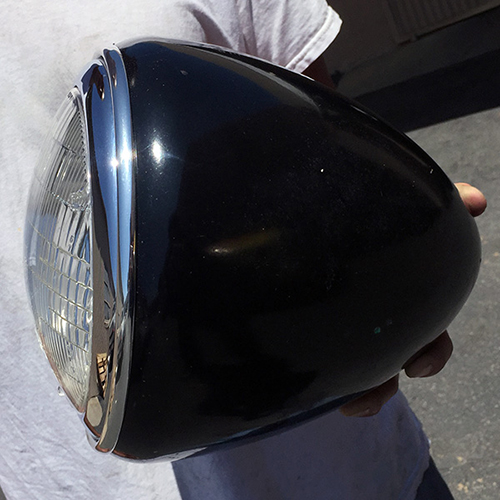

And that's it!
