Headwinds: Illuminator - CANBus - Rear: Run/Turn/Brake - Front: Run/Turn

Product Search

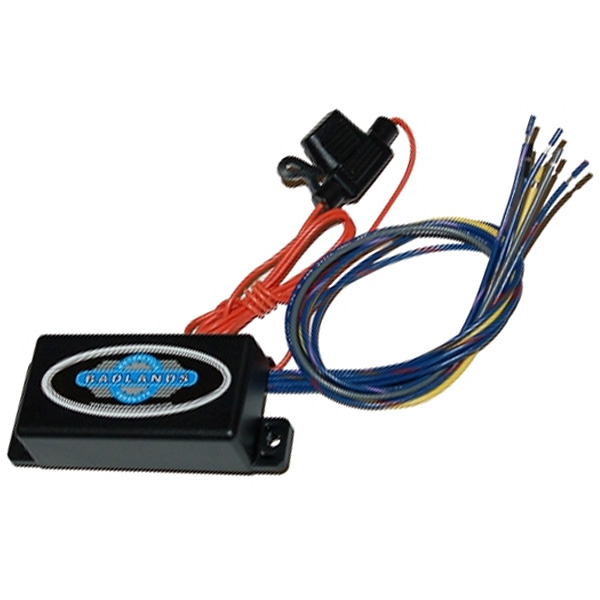

Illuminator - CANBus - Rear: Run/Turn/Brake - Front: Run/Turn - Hard Wire

Quantity in Basket: None
Code: 8-2003-ILL-CB
Price: $109.95

Quantity:

Convert single filament bulbs into three function with a distinct intensity difference between high & low (Run & Turn/Brake)

FITS:
FLHR/T/X - '14-on
FLSTF/N/C - '11-on
FXD/B/.. - '11-on
FXDWG - '11-on
XL - '11-on

FEATURES:
• Converts single filament bulbs (1156, MR8, MR11, MR16 & others) into 2 or 3 function lights
• Converts LED bulbs into 2 or 3 function lights by hooking up the hi-beam on the LED turn signal
• Built-in Load Equalizer
• Security System compatible
• Works with H-D Self Canceling Signal Modules and TSM/TSSM/HFSM
• Easy to follow instructions, connectors and plugs included
• Made by Badlands in the USA

FRONT WIRE SCHEMATIC: Click Here

REAR WIRE SCHEMATIC AND INSTRUCTIONS: Click Here
