7" Headlight Housing w/5-3/4" Attached - Concours Rockets - Big Rig - Chrome (pair)

7
Click thumbnail on the right to see a full-size version
7 7
7
7
7
7

Quantity in Basket: None
Code: 1-7800-58HRCAP
Price: $1,700.95


Quantity:

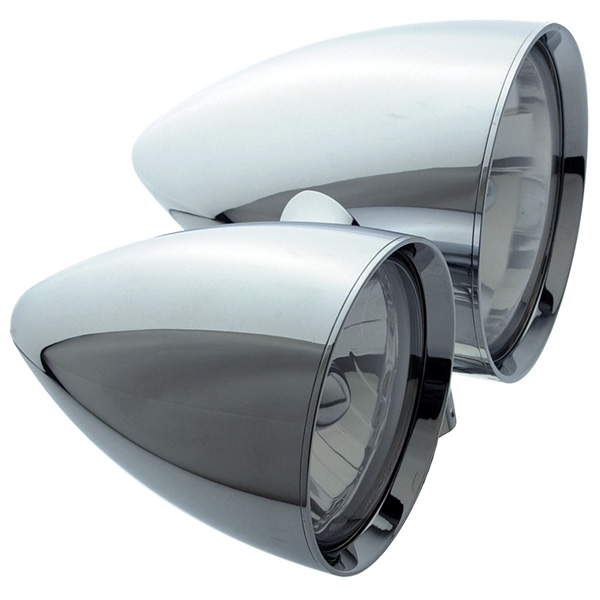

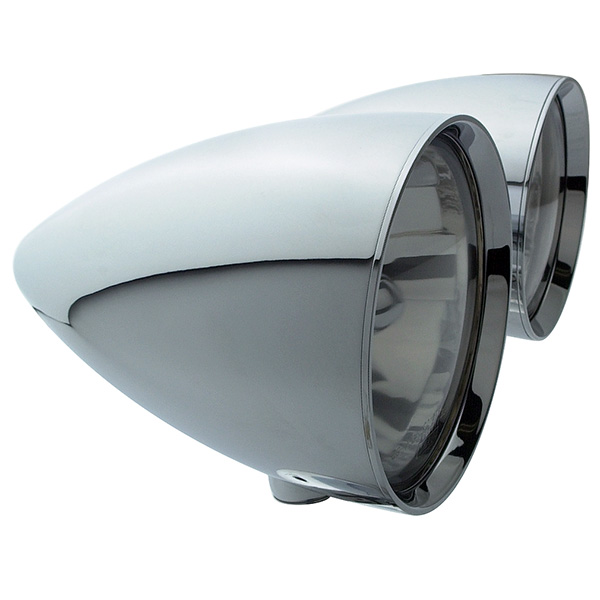

Lead the way with our 5x7 quad headlight set-up.

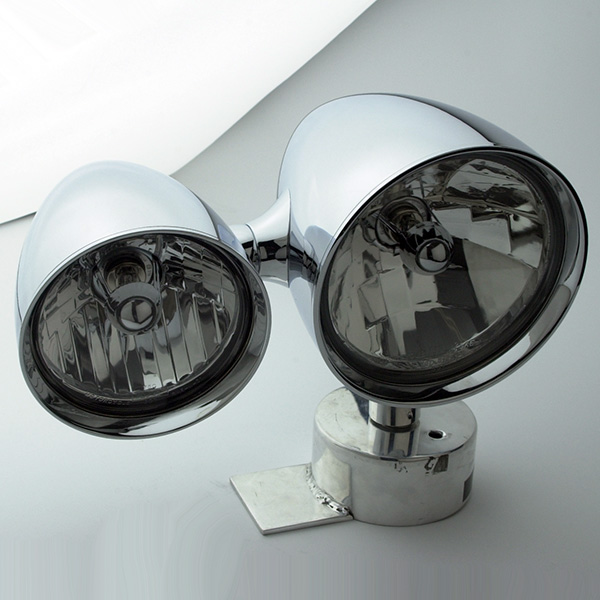

That's right a 5-3/4" headlight is mounted on the 7" giving the illusion of a floating outer headlight.
As seen on "The Beast" by Elizabeth Truck Center.

The "fade-away" headlight size, with Headwinds' premium quality finish will set your show truck apart from the others!

FEATURES:
• Mounted side by side
• Bottom mounted to stock headlight bracket
• Housings are independently adjustable
• Housing is threaded, has a screw-in bezel and lamp retaining ring
• Use part number 1-0061JJCAP with JJ bracket Click Here

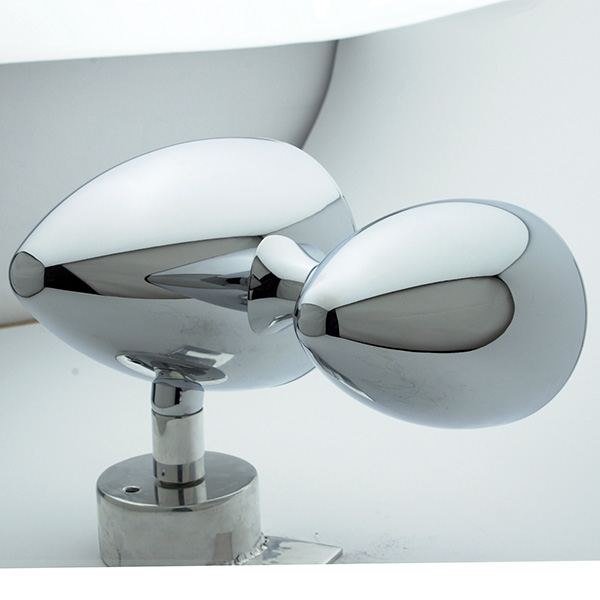

• They feature a 1-1/2” diameter ball mount
• 1/2-13 bolt extends 1-1/4” from the ball. Longer bolts available
• Bolt is drilled to route wire through and can be hidden using our Wire Conduit Click Here
• 7" housing (part #: 1-7800HR)
        Diameter: 7-1/2"
        Length: 9-5/32"
• 5-3/4" housing (part #: 1-5800HR)
        Diameter: 6"
        Length: 7-3/4"
• Spun billet aluminum housing
• Fully machined with a non-wavy mirrored finish
• Fits all SAE lamps
• 6" pigtail included
• Pigtail connector kit 8-0902A recommended
• DOT approved
• Made in the USA by Headwinds, Inc.

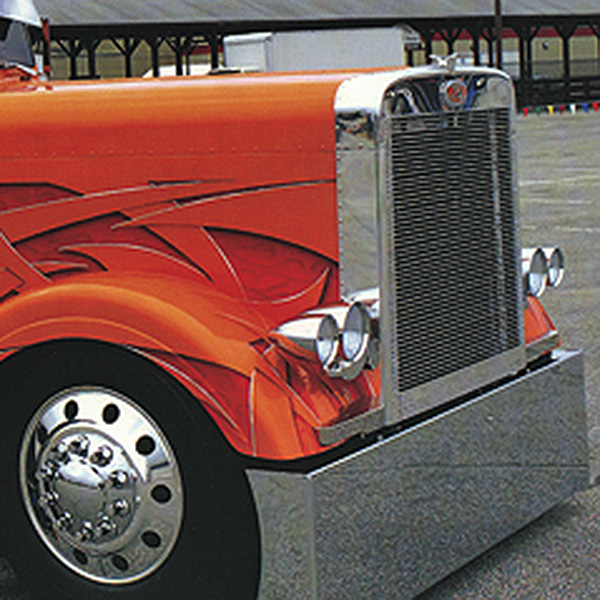

The Beast: by Elizabeth Truck Center

NEEDED FOR INSTALLATION:
• Lamps - Click Here
• Mounts - Click Here
• Mounting Bolts - Click Here
• Connector Kits - Click Here
