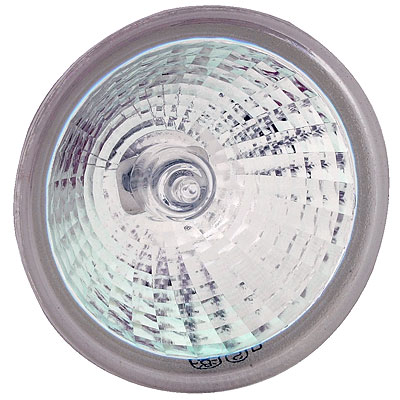

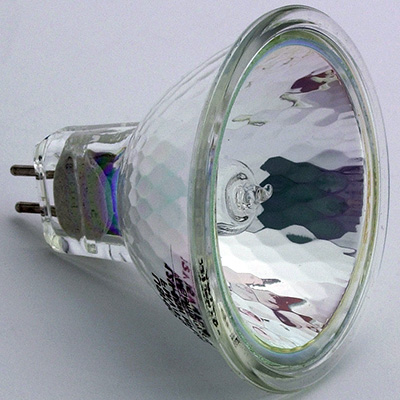

2" Spotlamp - 35W, MR16, 36º Beam Angle - Glass Lens (each)
Click thumbnail on the right to see a full-size version

Quantity in Basket: None
Code: 8-9235-36FG
Price: $10.95
This 35W, 36 beam angle, narrow flood lamp throws light down the road far and wide! A pair of these
spotlamps will draw 6 amps and hooked up with your 5 amp headlight would draw a total of 11 amps.

See below for our recommendations on how to hook up the spotlamps safely and inexpensively by
using a proper switch and wire size. Make sure your alternator output can handle this kind of load.

• Sold individually. Not as a pair
• 12V
• 35W
• Each lamp draws 3 amps
• 36 Beam Angle Narrow Flood Light
• 2" Mirrored Reflector (MR16) with Front Glass lens

• Suited well as a headlamp
• Using a separate switch or a relay is recommended
• Use toggle switch or rocker switch rated at 14 amps or greater Click here
• Can be wired to the headlight hi/lo switch if using a relay Click here
• 18 gauge wire amperage capacity is 14 amps so stock H-D 18 gauge wire can handle this load
• Requires a minimum 15 amp fuse and a 15 amp relay
• Call Headwinds with any questions
