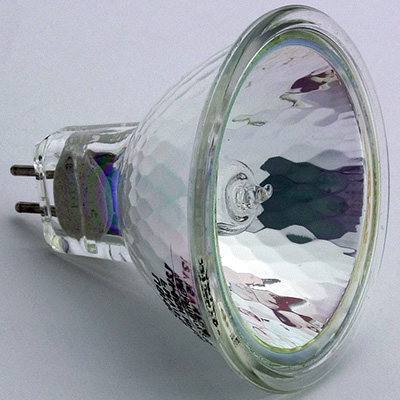

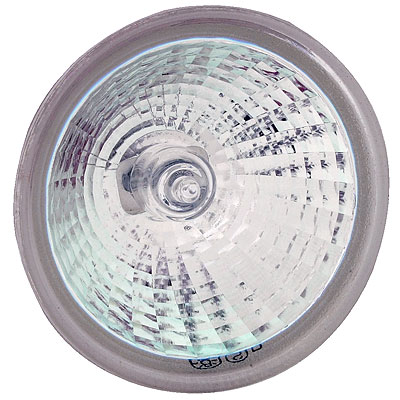

2" Spotlamp - 75W, MR16, 24º Beam Angle - Glass Lens (each)
75W, 24 Beam Angle
Click thumbnail on the right to see a full-size version

Quantity in Basket: None
Code: 8-9275-24FG
Price: $10.95
Daylight in the dark!

This 75W, 24 beam angle, spotlight throws light down the road far
and wide! However, this performance comes at a cost to your electrical
system. A pair of these spot lamps will draw 12.5 amps and hooked up
with your 5 amp headlight would draw a total of 17.5 amps which will
over load your stock headlight switch and wiring, if not done correctly.

See below for our recommendations on how to hook up the spot lamps
safely and inexpensively by using a proper switch and wire size.
Also make sure your alternator output can handle this kind of load.


Each lamp draws 6.25 amps
24 Beam Angle Spotlight
2 Mirrored Reflector (MR16) with Front Glass lens

Sold individually. Not as a pair

Suited well as a spot lamp
Using a separate switch or a relay is recommended
Use toggle switch or rocker switch rated at 14 amps or greater
Can be wired to the headlight hi/lo switch if using a relay
18 gauge wire amperage capacity is 14 amps so stock H-D 18 gauge
  wire can handle this load as long as the headlight and spotlights are
  not on the same circuit
Requires a minimum 15 amp fuse and a 15 amp relay
Call Headwinds with any questions
