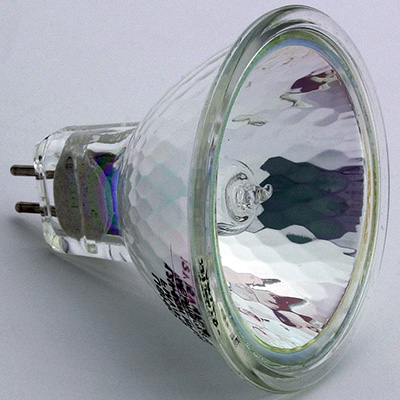

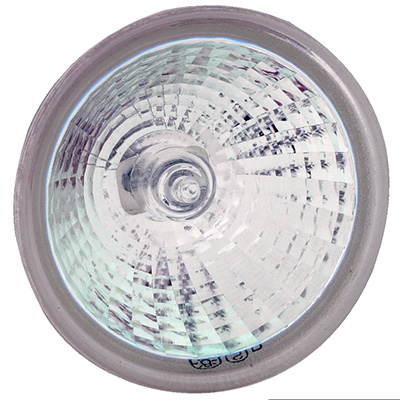

2" Spotlamp - 75W, MR16, 36º Beam Angle - Glass Lens (each)
75W, 36º Beam Angle

2
Click thumbnail on the right to see a full-size version
2
2

Quantity in Basket: None
Code: 8-9275-36FG
Price: $8.95


Quantity:

Daylight in the dark!

This 75W, 36º beam angle, narrow flood spot lamp throws light down
the road far and wide! However, this performance comes at a cost to
your electrical system. A pair of these spot lamps will draw 12.5 amps
and hooked up with your 5 amp headlight would draw a total of 17.5
amps which will over load your stock headlight switch and wiring, if not
done correctly.

See below for our recommendations on how to hook up the spot
lamps safely and inexpensively by using a proper switch and wire size.
Also make sure your alternator output can handle this kind of load.

PART NUMBER:
8-9275-36FG

FEATURES:
• 12V
• 75W
• Each lamp draws 6.25 amps
• 36º Beam Angle Narrow Flood Light
• 2” Mirrored Reflector (MR16) with Front Glass lens

Sold individually. Not as a pair

INSTALLATION RECOMMENDATIONS:
• Suited well for a headlight
• Using a separate switch or a relay is recommended
• Use toggle switch or rocker switch rated at 14 amps or greater
• Can be wired to the headlight hi/lo switch if using a relay
• 18 gauge wire amperage capacity is 14 amps so stock H-D 18 gauge
  wire can handle this load as long as the headlight and spotlights are
  not on the same circuit
• Requires a minimum 15 amp fuse and a 15 amp relay
• Call Headwinds with any questions
